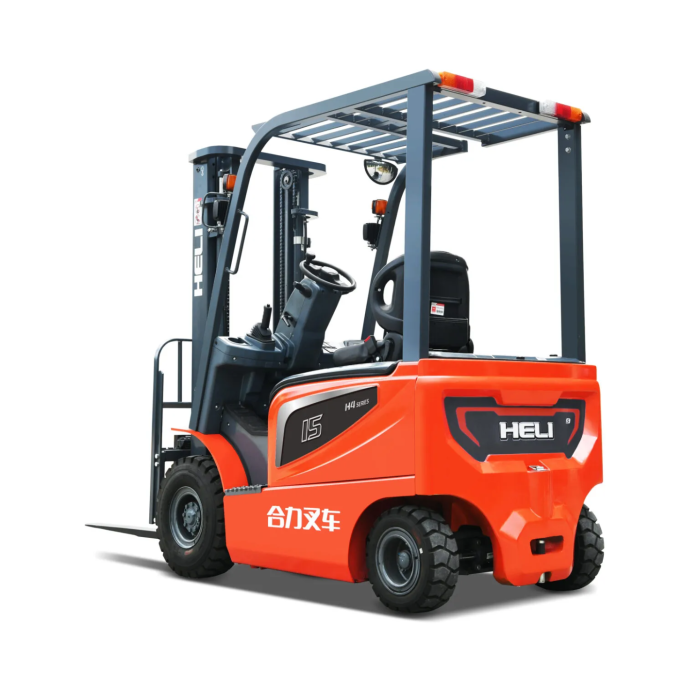

Forklift HELI CPD18

Electric TRIPLEX 4700MM, 4 SECTION
• The TVL series can be applied to almost every
work application. It meets indoor warehousing
transportation demands, especially for narrow
aisle applications, due to its small turning
radius, 1550mm of CPD18TVL. It also performs
well when it comes to loading and unloading
at docks or side bay lorries — thanks to its
powerful 80V battery performance. The Li-ion
powered TVL series allows opportunity
charging making it the perfect truck for rental
business.
• The TVL series forklift comes with a compact
sized 80V/205Ah EP Li-ion battery and an
80V/35A single-phase integrated charger with
16amp plug allowing the truck to be charged
at any power outlet. The Li-ion battery also
provides opportunity charging to be charged
during breaks and meet the whole day work.
And it communicates via Can-Bus with the
truck to ensure efficient usage of the truck at
all times.
• The LFP battery is very efficient, cutting net
electricity consumption by up to 30% over an
equivalent lead-acid battery. It is also
maintenance-free, emission-free, impact-safe
and rated for over 2000 discharge cycles.
QUOTATION SPECIFICATION
Model NEW PL CPD18TVL
Capacity
Nominal capacity 1800kg @ 500mm L/C
Mast
Type 3 stage Triplex with free lift
Max Lift Height 4800mm
Closed Height 2240mm
Free Lift 1530mm
Mast Tilt 6° fwd / 6° back
Key Dimensions
Truck Length 1913mm, excluding fork length
Overall Width 1070mm
Aisle Width 3275mm (pallet 1000x1200mm)
Turning Radius 1550mm
Fork & Fork Carriage
Fork Length 1150mm
Type Class IIA
Carriage Width 1040mm
Load Backrest Standard
Hydraulic Control
Valve Bank 3 way
Hose Group 3 way
Drivers Cab
Overhead Guard Standard, with top cover
Seat Type Full suspension, Fully adjustable
Hydraulic Levers Manual levers
Truck Lighting
Type 2 forward + 1 rear work lights,
halo pedestrian warning lighting.
Tyres
Type Superelastic – puncture-proof
Power Source
Motors 2x5kW drive, 11kW lift motors
Battery Li-ion 80V 205Ah, 6 year warranty
Charger 80V 35A Automatic, 1 phase(16A)
Additional Features Included
Sideshift, flashing beacon, reverse alarm
