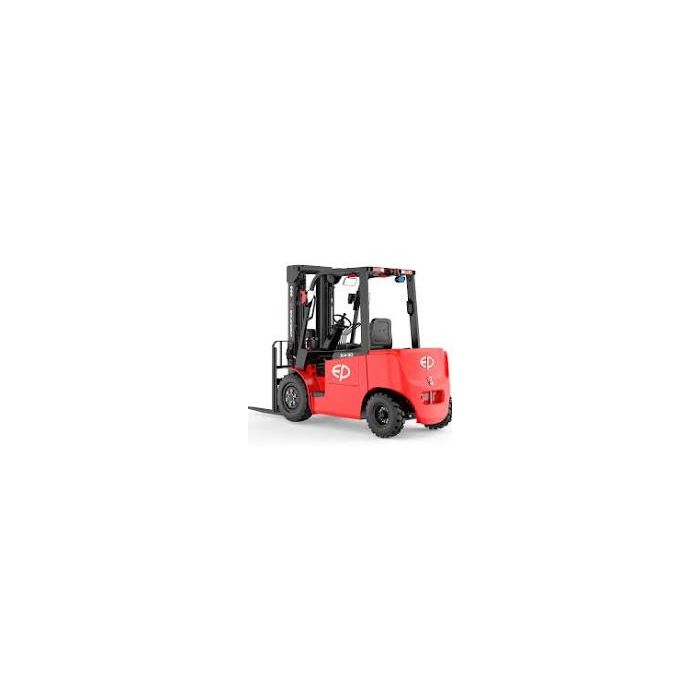

Forklift EFL 302 X4
| Manufacturer | EP |
| Model designation | EFL302X4 |
| Drive | Electric |
| Operator type | Seated |
| Load capacity | 3000KG |
| Load center distance | 500mm |
| Load distance centre of drive axle to fork | 486mm |
| Wheelbase | 1760mm |
| Service weight | 4354kg |
| Axle loading laden front/rear | 6537/817kg |
| Axle loading unladen front/rear | 1854/2694kg |
| Tyre type | pneumatic |
| Tyre size front | 28X9-15-14PR |
| Tyre size rear | 6.5F-10-10PR |
| Wheels number front/rear (x=drive wheels) 2x/ 2mm | 2X/2 |
| Tread width front | 989mm |
| Tread width rear | 980mm |
| Tilt of mast/fork carriage forward/backward | 6/10 |
| Retracted mast height | 2070mm |
| Free lift | 130mm |
| Lift height | 3000mm |
| Height mast extended | 3725mm |
| Height of overhead guard | 2143mm |
| Seat height/standing height | 1141mm |
| Tow coupling height | 460mm |
| Overall length | 3735mm |
| Length to face of forks | 2665mm |
| Overall width | 1228mm |
| Fork dimensions | 45x122x1070 |
| A,B Fork carriage | 3A |
| Fork carriage width | 1100mm |
| Ground clearance laden, below mast | 125mm |
| Ground clearance center of wheelbase | 137m2 |
| Aisle width for pallets 1000x1200 crossways | 4115mm |
| Aisle width for pallets 800x1200 lengthways | 4315mm |
| Turning radius | 2428mm |
| Travel speed laden/unladen | 11/12km/h |
| Lifting speed laden/unladen | 0.29/0.36m/s |
| Lowering speed laden/unladen | 0.4/0.4 |
| Max gradeability laden/unladen | 15/15% |
| Service brake | Hydraulic |
| Parking brake | Mechanical |
| Drive motor rating S2 60min | 8kw |
| Lift motor rating S3 15% | 16kW |
| Battery voltage/nominal capacity | 80V100AH x 6 |
| Type of drive control | PMSM |
| Steering design | Hydraulic |
| Sound pressure level at the driver's ear | 60dB(A) |
In stock
£6,360.00
Excl. Tax:
£5,300.00
Excl. Tax:
Description / Forklift EFL 302 X4
| Manufacturer | EP |
| Model designation | EFL302X4 |
| Drive | Electric |
| Operator type | Seated |
| Load capacity | 3000KG |
| Load center distance | 500mm |
| Load distance centre of drive axle to fork | 486mm |
| Wheelbase | 1760mm |
| Service weight | 4354kg |
| Axle loading laden front/rear | 6537/817kg |
| Axle loading unladen front/rear | 1854/2694kg |
| Tyre type | pneumatic |
| Tyre size front | 28X9-15-14PR |
| Tyre size rear | 6.5F-10-10PR |
| Wheels number front/rear (x=drive wheels) 2x/ 2mm | 2X/2 |
| Tread width front | 989mm |
| Tread width rear | 980mm |
| Tilt of mast/fork carriage forward/backward | 6/10 |
| Retracted mast height | 2070mm |
| Free lift | 130mm |
| Lift height | 3000mm |
| Height mast extended | 3725mm |
| Height of overhead guard | 2143mm |
| Seat height/standing height | 1141mm |
| Tow coupling height | 460mm |
| Overall length | 3735mm |
| Length to face of forks | 2665mm |
| Overall width | 1228mm |
| Fork dimensions | 45x122x1070 |
| A,B Fork carriage | 3A |
| Fork carriage width | 1100mm |
| Ground clearance laden, below mast | 125mm |
| Ground clearance center of wheelbase | 137m2 |
| Aisle width for pallets 1000x1200 crossways | 4115mm |
| Aisle width for pallets 800x1200 lengthways | 4315mm |
| Turning radius | 2428mm |
| Travel speed laden/unladen | 11/12km/h |
| Lifting speed laden/unladen | 0.29/0.36m/s |
| Lowering speed laden/unladen | 0.4/0.4 |
| Max gradeability laden/unladen | 15/15% |
| Service brake | Hydraulic |
| Parking brake | Mechanical |
| Drive motor rating S2 60min | 8kw |
| Lift motor rating S3 15% | 16kW |
| Battery voltage/nominal capacity | 80V100AH x 6 |
| Type of drive control | PMSM |
| Steering design | Hydraulic |
| Sound pressure level at the driver's ear | 60dB(A) |
